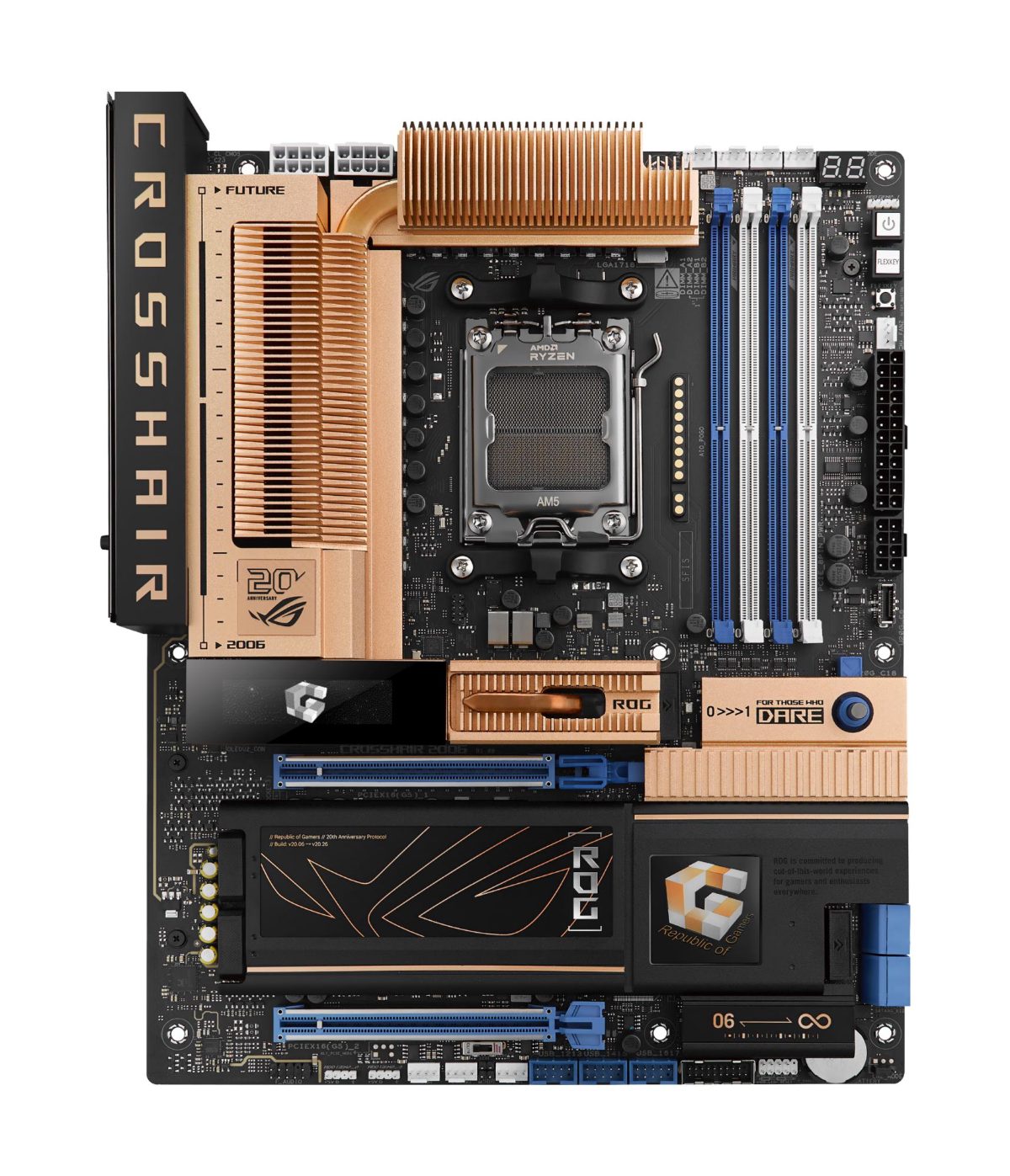

Mainboard, ASUS, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots
Mainboard, ASUS, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 5xNumber of M.2 (M) slots, ROGCROSSHAIR2006
ASUS · 4711636595704
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4711636595704
- Brand
- ASUS
Description

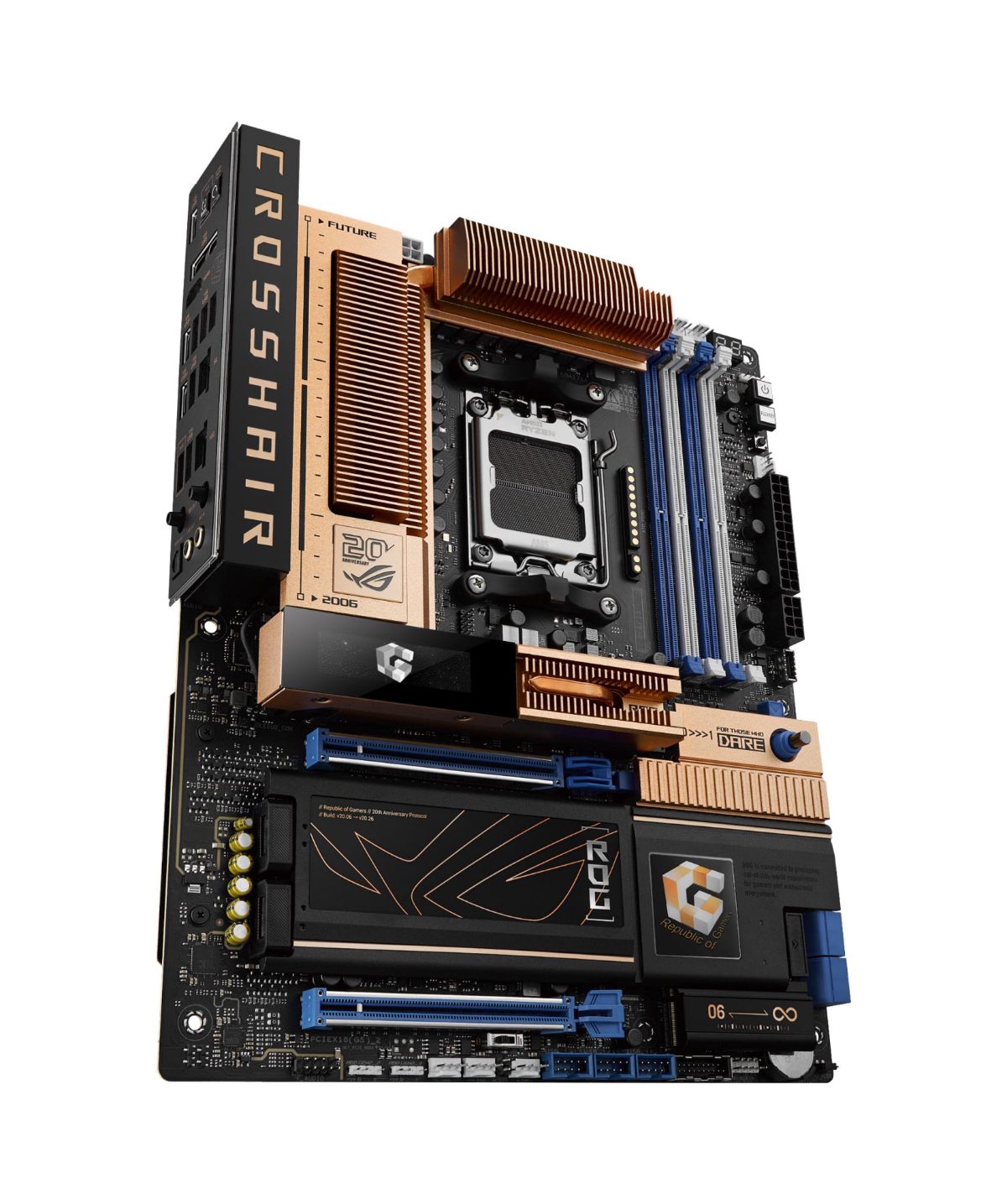

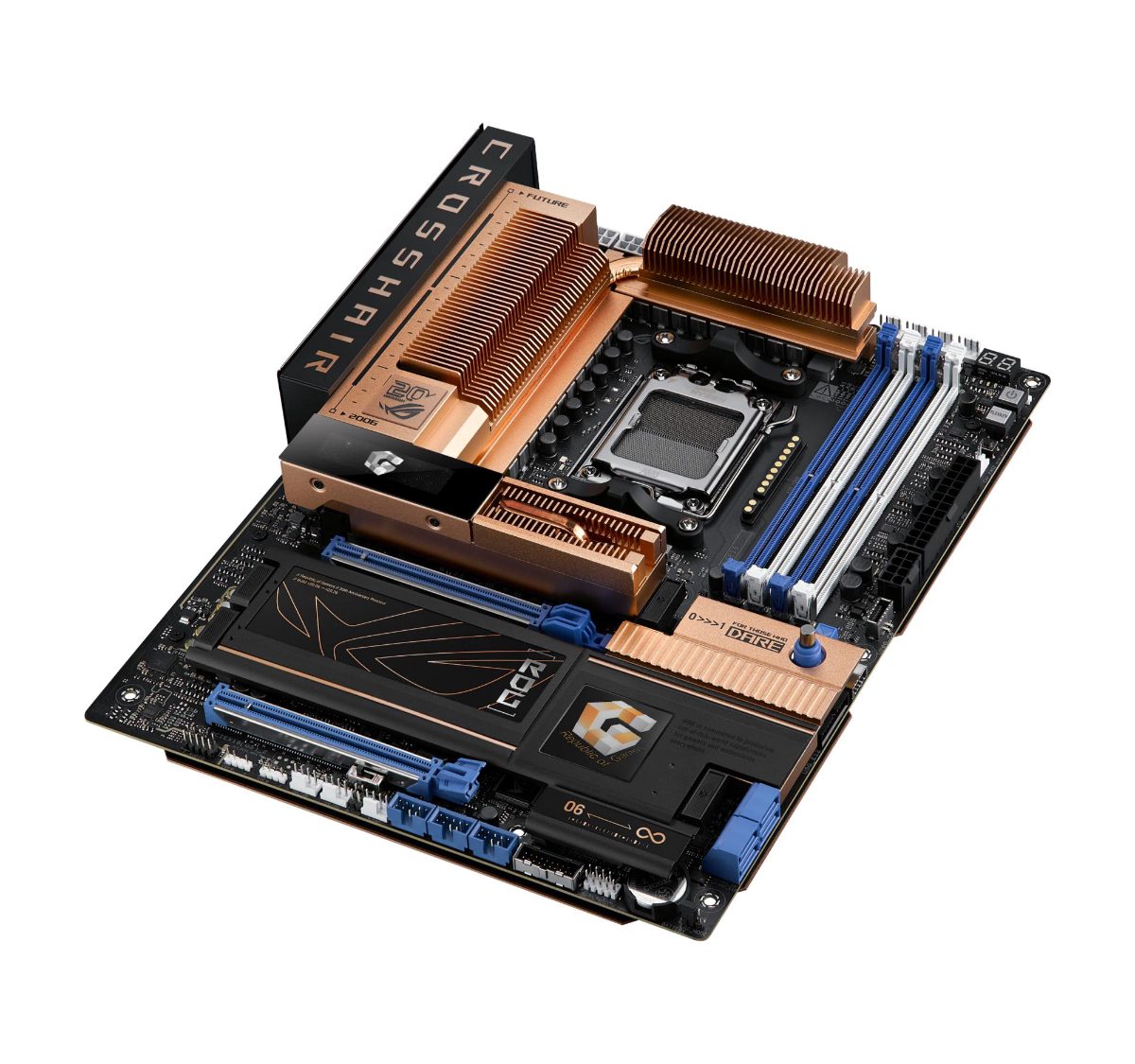

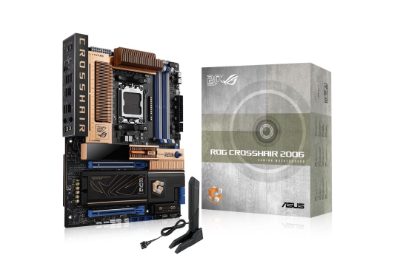

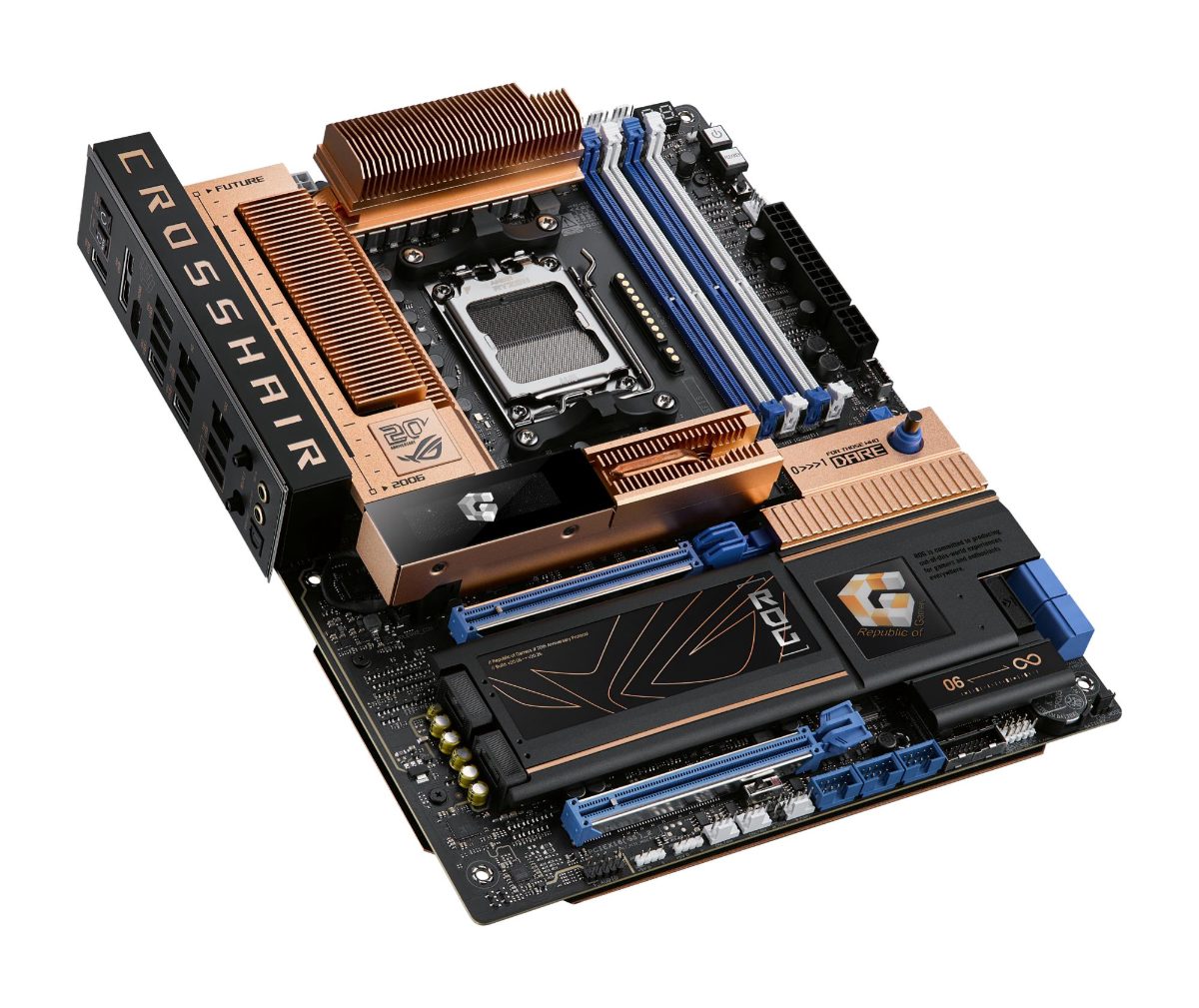

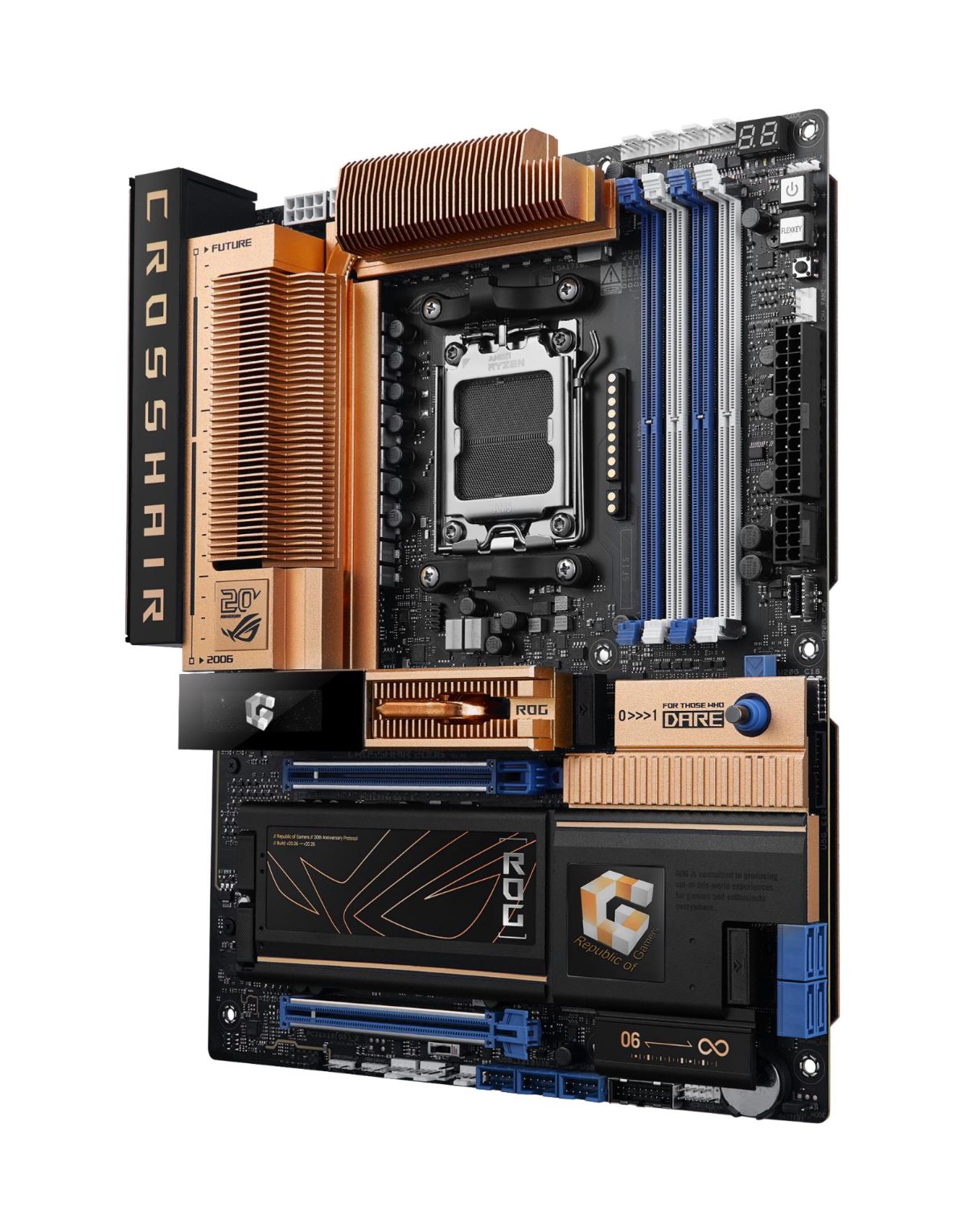

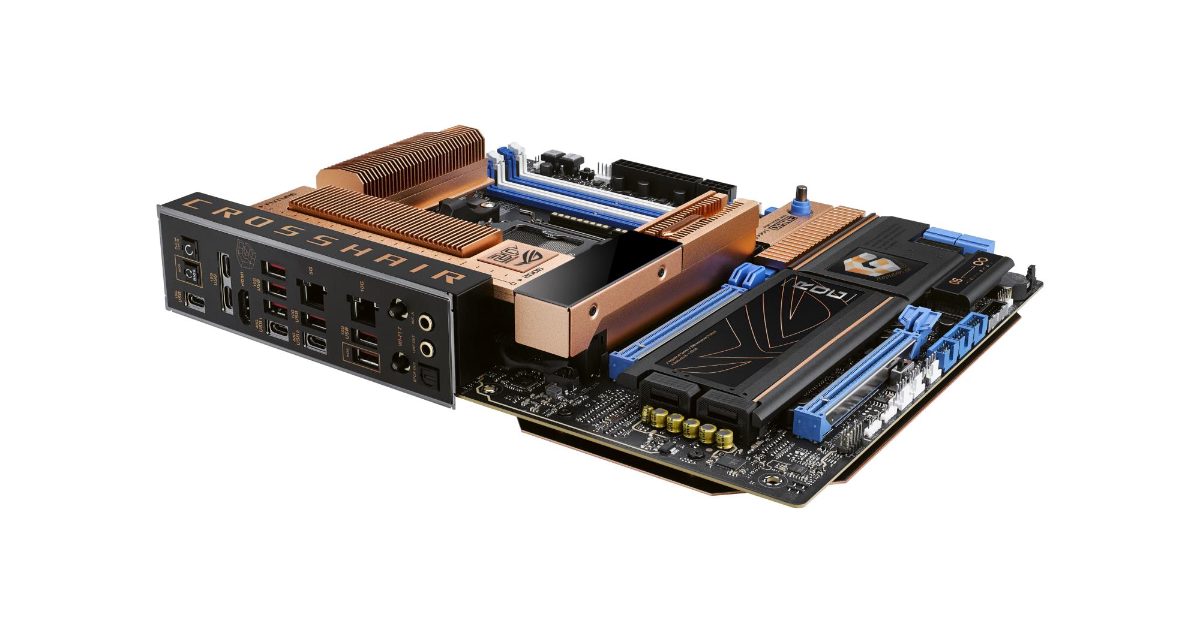

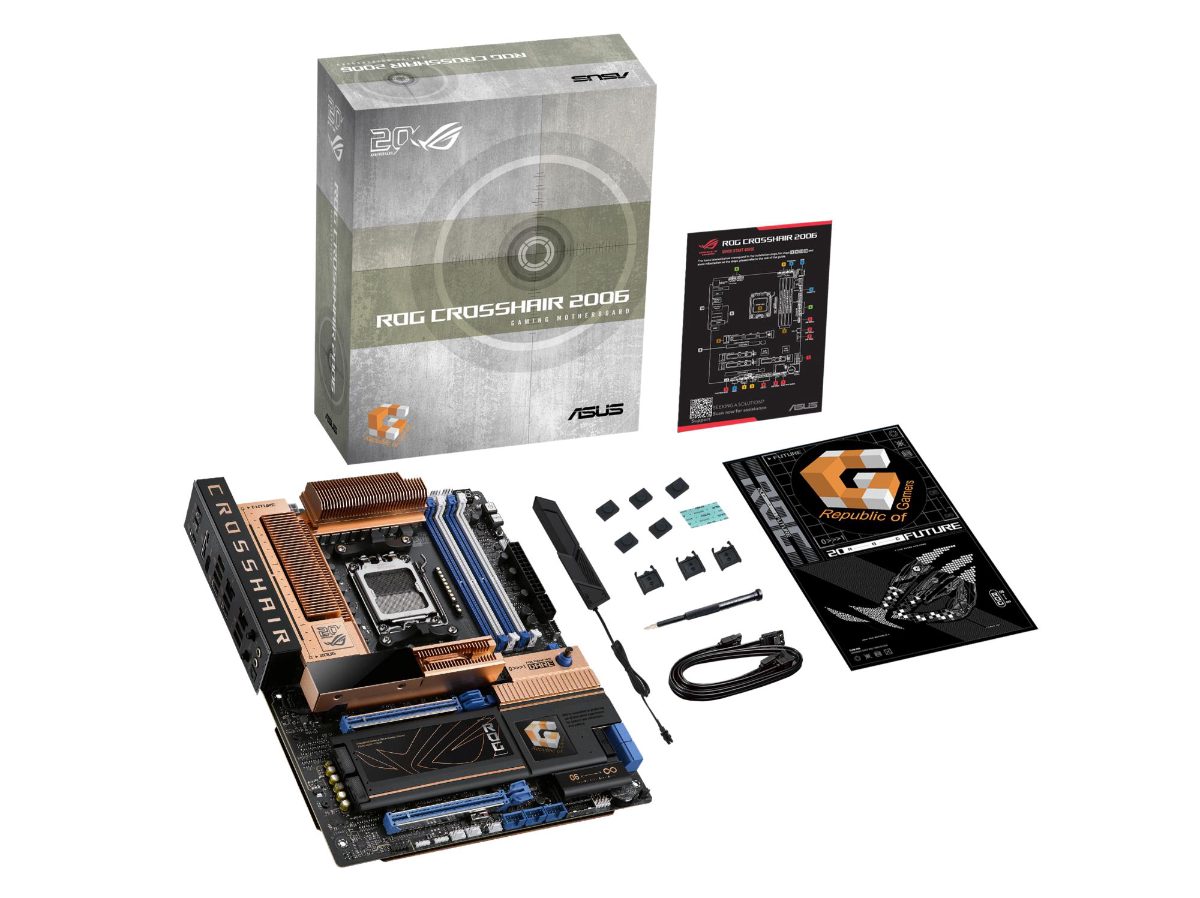

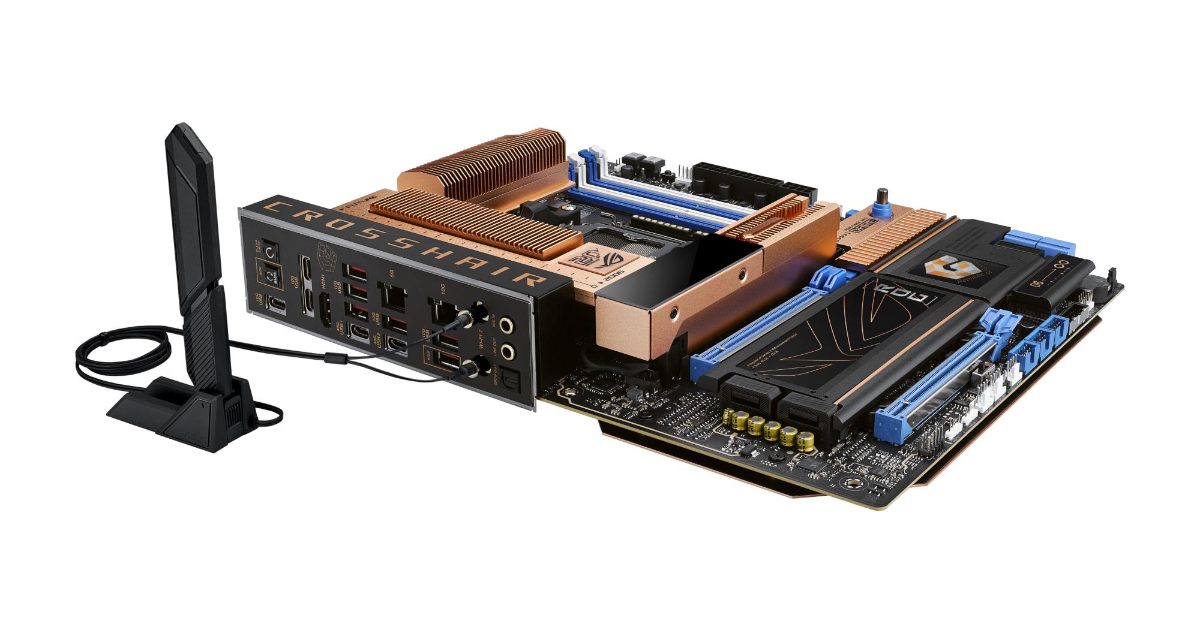

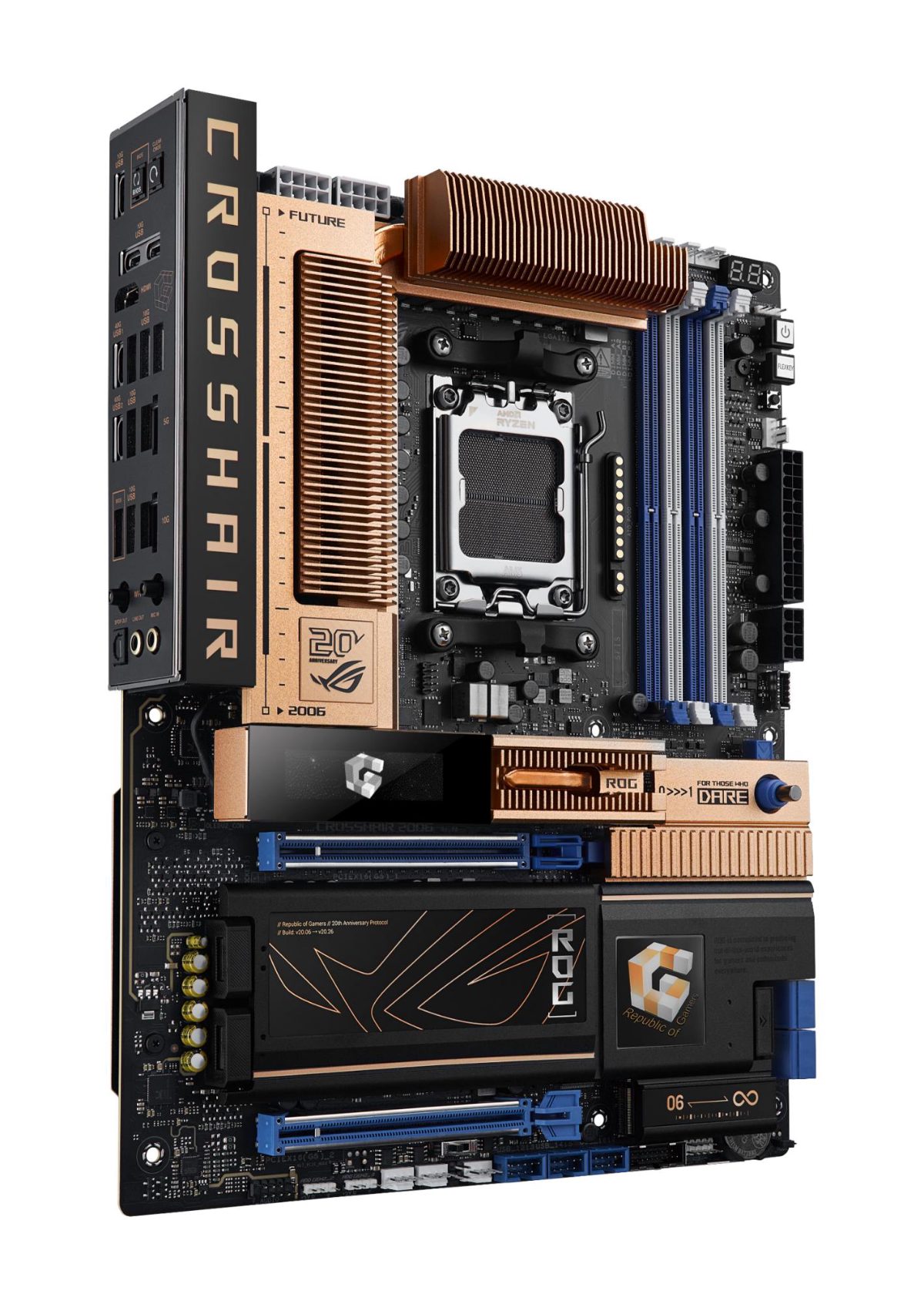

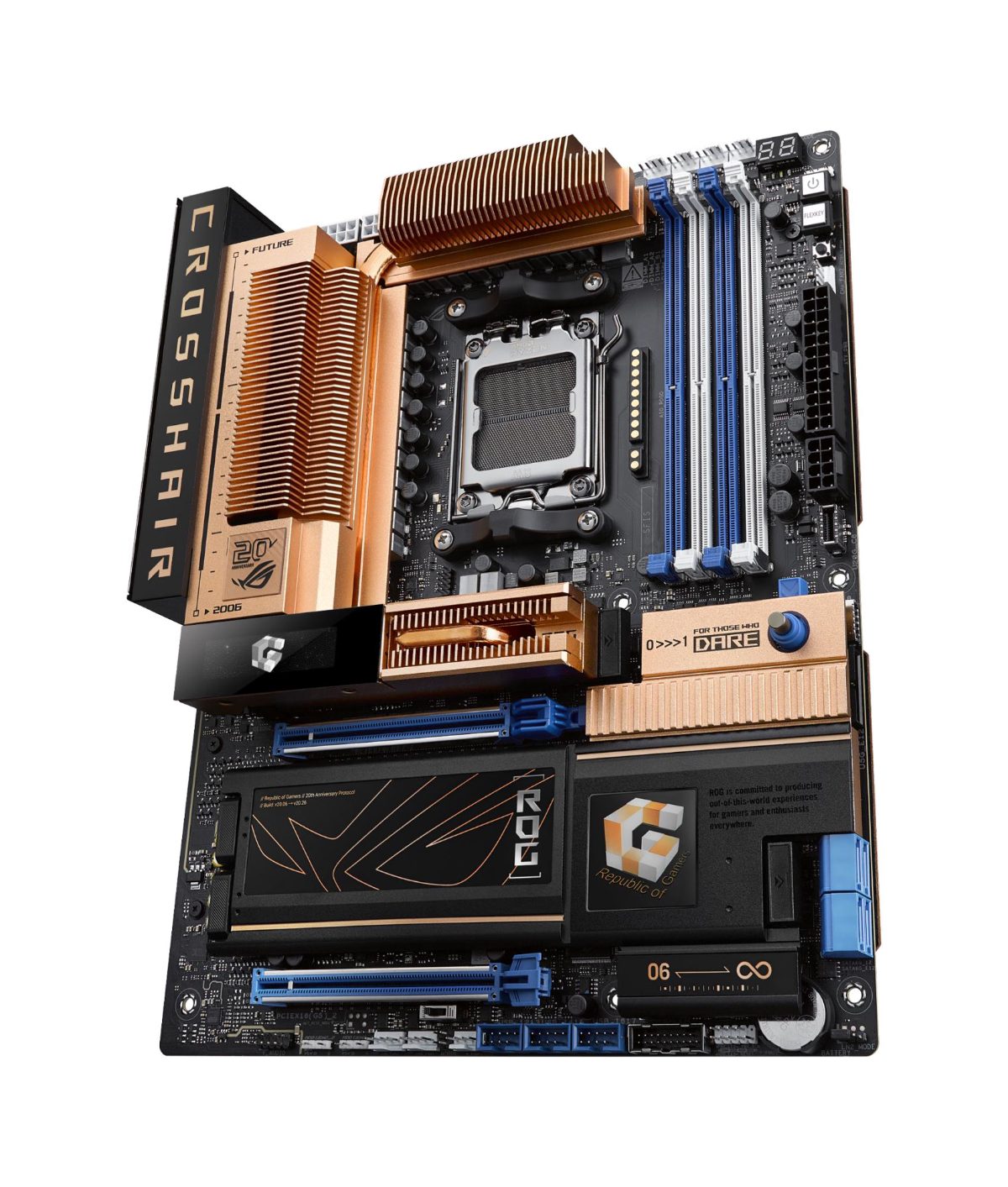

ROG Crosshair 2006

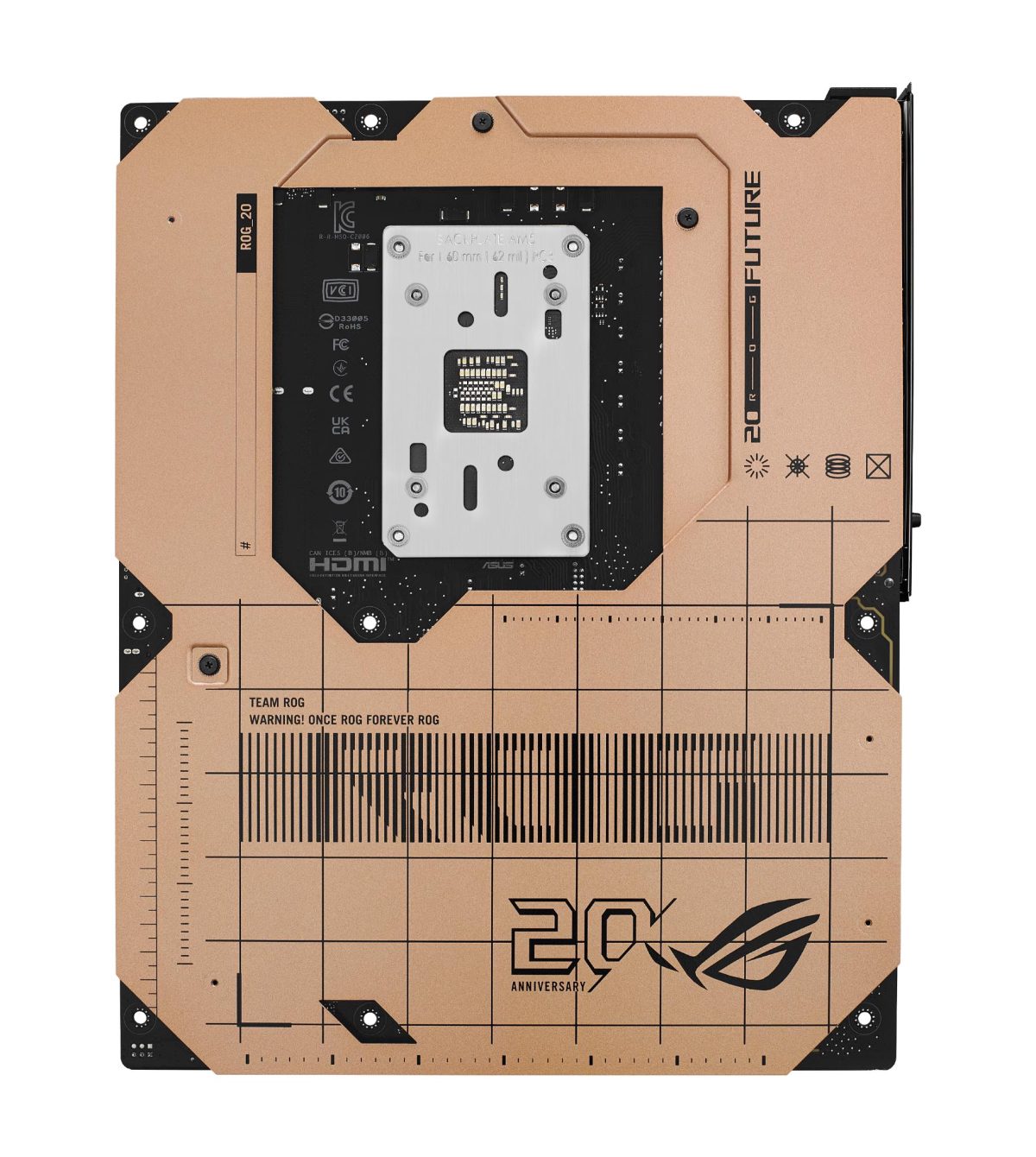

The ROG Crosshair 2006 celebrates the 20th anniversary of the very first ROG motherboard with a retro-inspired copper color design and signature OLED animation. This flagship platform also offers advanced power delivery and cutting-edge memory technologies, blending heritage with modern performance.
Personalization
The ROG Crosshair 2006 includes LiveDash, a built-in 2-inch OLED panel that shows useful information and features customizable graphics. During the power-on, self-test (POST) phase, the OLED shows key stats in simple language using traditional POST codes. In normal operation, the panel can be programmed to show CPU frequency, device temperatures, or fan speeds. You can also personalize the default OLED GIF with a preferred image or animation.
*Supports custom animation uploads in 256x64 pixel monochrome format (up to 100KB).
Specifications
| Audio chip | Realtek ALC4082 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Chipset | AMD X870E |
| Chipset family | AMD |
| Form factor | ATX |
| Power source | ATX |
| Colour | Black/Gold |
| Supported Windows operating systems | Windows 11 |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| ECC compatibility | ECC & Non-ECC |
| Maximum memory | 256 GB |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Supported HDDs | 4 |
| Supported storage drives | 9 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported drive interfaces | M.2,SATA III |
| Supported drive types | HDD & SSD |
| Multi-GPU technology | Not supported |
| 12V power connector | Yes |
| ATX power connector | Yes |
| CPU fan connector | Yes |
| EPS power connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Fan connector count | 4 |
| Number of RGB LED pin headers | 3 |
| SATA connectors | 4 |
| Temperature sensor header count | 1 |
| RGB LED pin header | Yes |
| Internal USB 2.0 connectors | 3 |
| Internal USB 3.2 Gen 1 connectors | 2 |
| USB 3.2 Gen 2x2 connectors | 2 |

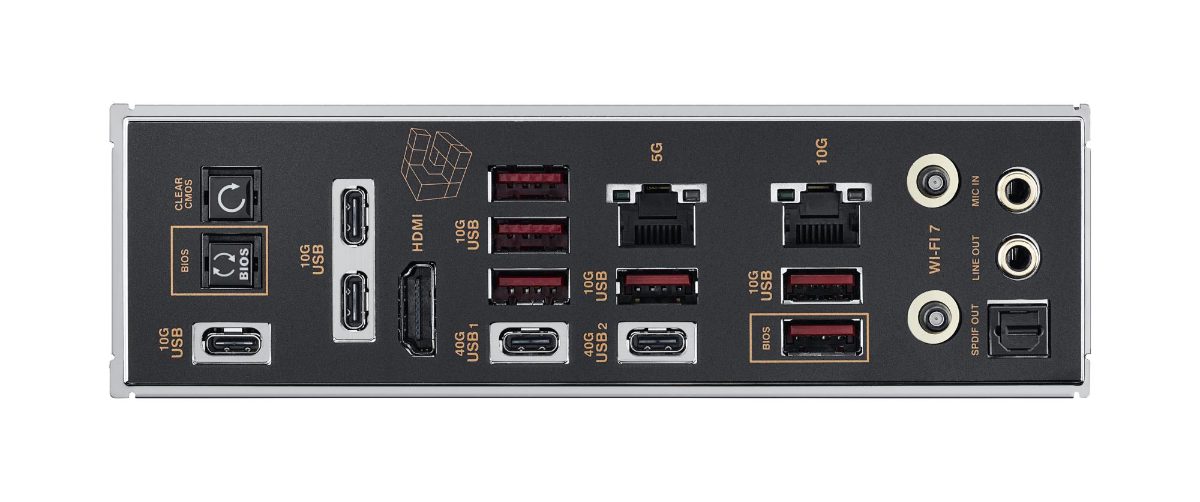

| Ethernet (RJ-45) ports | 2 |
| HDMI ports | 1 |
| S/PDIF out connector | Yes |
| USB 3.2 Gen 2 Type-A ports | 6 |
| USB 3.2 Gen 2 Type-C ports | 3 |
| USB4 Gen 3x2 ports | 2 |
| Wi-Fi AP antenna jack | 1 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ethernet type | 10 Gigabit Ethernet/5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Wi-Fi chipset | MediaTek MT7927 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| Fourth M.2 key size | 2280 |
| 5th M.2 highest PCI Express generation | 4.0 |
| M.2 slot 5 key size | 2230 |
| M.2 slot count | 5 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| BIOS memory size | 512 Mbit |
| BIOS type | UEFI AMI |
| Depth | 244 mm |
| Height | 50 mm |
| Width | 305 mm |
| Antenna included | Yes |
| Cables included | SATA |
| Screws included | Yes |
| Weight | 2506 g |
| Net weight | 4 kg |
